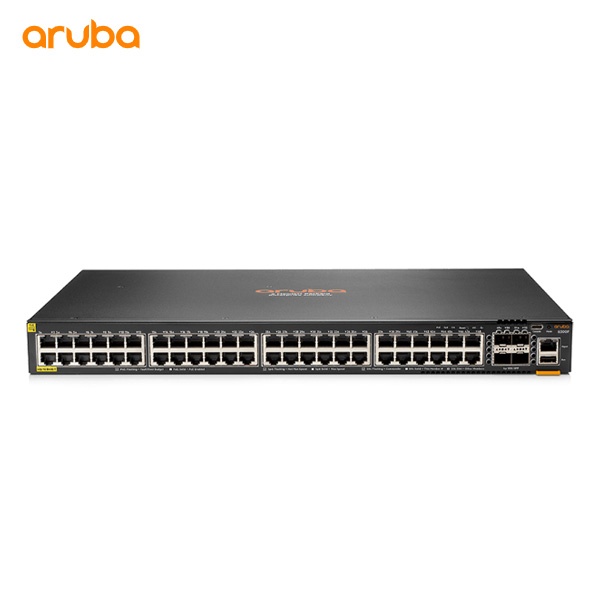

Aruba 6300F 48-port 1GbE Class 4 PoE (JL665A)

Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)

• 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
• 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
• Internal (fixed) power supply (950W), fixed fans
• Up to 720W of PoE+
• Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
• Weight: 5.10 kg (11.24 lbs)

Management ports:

• 1x USB-C Console Port
• 1x OOBM port
• 1x USB Type A Host port
• 1x Bluetooth dongle for use with Aruba CX Mobile App

POE Power:

• Up to 2880W of Class 6: JL659A
• Up to 1440W of Class 6: JL660A
• Up to 1440W of Class 4: JL661A
• Up to 720W of Class 4: JL662A
• 720W of Class 4: JL665A
• 370W of Class 4: JL666A

Mounting:

• Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Power supplies and fan tray:

• Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
• Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
• Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
• Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
• Aruba X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
• Aruba 6300M 250W 36-72VDC PSU (JL757A)
• Aruba 6300M 1050W 36-72VDC (JL758A)
• Aruba 6300M Fan Tray (JL669A)
• Aruba 6300M Power-to-Port Fan Tray (JL761A)

Environmental:

• Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft
• Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
• Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft
• Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
• Max. Operating Altitude: 10,000 feet (3.04 km)
• Max Non-operating Altitude: 15,000 feet (4.6 km)
• Acoustics:
  • Sound Power (LWAd) range: 4.6- 5.2 Bel
  • Sound Pressure (LpAm) (Bystander) range: 28.7-34.9 dB
• Primary airflow: Front and side to back. JL762A has back to front and side.

Electrical characteristics:

• Frequency range: 50-60 Hz
• AC Voltage: 100-240 volts
• Maximum current range: 12A – 1.2A

Safety:

• 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
• UL 60950-1 2^nd Ed.
• CAN/CSA 22.2 No 60950-1-07
• IEC 60950-1:2005 (w/all know national deviations)

Emissions:

• EN 55022:2010, Class A
• EN 55032:2012, Class A
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• FCC part 15 Class A or FCC 47 CFR part 15B Class A
• ICES-003 Class A
• VCCI Class A
• CISPR 22 Class A
• CISPR 32 Class A or CISPR 32 Ed 2.0: 2015 +
• COR1:2016
• CISPR 24:2010 or CISPR 35:2016

Immunity:

• Generic: CISPR 24 / CISPR 35
• EN: EN 55024:2010 /EN 55035:2017
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3

Additional specifications:

For complete specifications Aruba 6300F 48-port 1GbE Class 4 PoE (JL665A), please see the data sheet (PDF)
