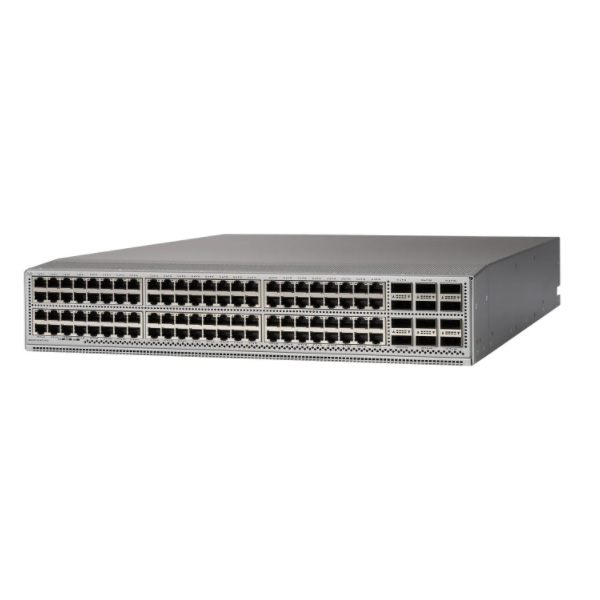

N9K-C93216TC-FX2 Nexus 9300 with 96p 10G-T, 12p 100G QSFP, MACsec capable
Cisco Nexus 9300-FX2 Series Switches Data Sheet
| N9K-C93216TC-FX2 | Nexus 9300 with 96p 10G-T, 12p 100G QSFP, MACsec capable |
| CON-SNT-N9KC932T | SNTC-8X5XNBD Nexus 9300 with 96p 10G-T, 12p 100G QSFP |
| MODE-NXOS | Dummy PID for mode selection |
| NXK-AF-PE | Dummy PID for Airflow Selection Port-side Exhaust |
| NXOS-9.3.2 | Nexus 9500, 9300, 3000 Base NX-OS Software Rel 9.3.2 |
| N9K-C9300-ACK | Nexus 9K Fixed Accessory Kit |
| NXA-FAN-160CFM-PE | Nexus Fan, 160CFM, port side exhaust airflow,Spare |
| NXA-PAC-1200W-PE | Nexus NEBs AC 1200W PSU – Port Side Exhaust |
| NXK-MEM-8GB | Additional memory of 8GB for Nexus Switches |
| CAB-9K10A-EU | Power Cord, 250VAC 10A CEE 7/7 Plug, EU |
| N9K-C9300-RMK | Nexus 9K Fixed Rack Mount Kit |
| C1A1TN9300XF-3Y | DCN Advantage Term N9300 XF, 3Y |
Cisco Nexus 9300-FX2 Series Switch specifications
|
Feature |
Cisco Nexus 9336C-FX2 |
Cisco Nexus 9336C-FX2-E |
Cisco Nexus 93240YC-FX2 |
Cisco Nexus 93360YC-FX2 |
Cisco Nexus 93216TC-FX2 |
|
Ports |
36 x 40/100-Gbps QSFP28 ports |
36 x 40/100-Gbps QSFP28 ports |
48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports |
96 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports |
96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gbps QSFP28 ports |
|
Supported speeds |
1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4×10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 |
1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4×10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 16/32-Gbps Fibre Channel[2] |
1/10/25-Gbps on downlinks 40/100-Gbps on uplinks |
1/10/25-Gbps on downlinks 40/100-Gbps on uplinks Breakout supported ports, 97-108: 4×10/25G |
100M/1/10 Gbps RJ45 downlinks 40/100-Gbps on uplinks Breakout supported ports, 97-108: 4×10/25G |
|
CPU |
4 cores |
4 cores |
4 cores |
4 cores |
4 cores |
|
System memory |
24 GB |
24 GB |
Upto 24 GB |
Upto 24 GB |
Upto 24 GB |
|
SSD drive |
128 GB |
128 GB |
128 GB |
128 GB |
128 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
40 MB |
40 MB |
|
Management ports |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
|
USB ports |
1 |
1 |
1 |
1 |
1 |
|
RS-232 serial ports |
1 |
1 |
1 |
1 |
1 |
|
Power supplies |
750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC** |
750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
1200W AC, 1200W HVAC/HVDC |
1200W AC, 1200W HVAC/HVDC |
|
Typical power (AC) |
337W |
337W |
298W |
404W |
580W |
|
Maximum power (AC) |
719W |
705W |
708W |
900W |
965W |
|
Input voltage (AC) |
100 to 240V |
100 to 240V |
100 to 240V |
100 to 240V |
100 to 240V |
|
Input voltage (High-Voltage AC [HVAC]) |
100 to 277V |
100 to 277V |
100 to 277V |
100 to 277V |
100 to 277V |
|
Input voltage (DC) |
–40 to –72V |
–40 to –72V |
–40 to –72V |
–40V to –72V |
–40V to –72V |
|
Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
–240 to –380V |
–240 to –380V |
–240V to –380V |
–240V to –380V |
|
Frequency (AC) |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
|
Fans |
3 dual fan trays |
6 |
5 |
3 fan trays |
3 fan trays |
|
Airflow |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
|
Physical dimensions |
1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) |
1.72 x 17.3 x 24.7 in. (4.4 x 43.9 x 62.7 cm) |
2.1 x 17.3 x 23.3 in. (5.3 x 43.9 x 59.1 cm) |
3.38 x 17.41 x 24.14in. (8.59 x 44.23 x 61.31 cm) |
3.38 x 17.41 x 23.6 in (8.59 x 44.2 x 59.9 cm) |
|
Acoustics |
76.2 dBA at 50% fan speed, 85.3 dBA at 70% fan speed, and 92.3 dBA at 100% fan speed |
74.7 dBA at 50% fan speed, 80.4 dBA at 70% fan speed, and 88.1 dBA at 100% fan speed |
76.4 dBA at 50% fan speed, 83.3 dBA at 70% fan speed, and 92.1 dBA at 100% fan speed |
76.7 dBA at 40% fan speed, 88.7 dBA at 70% Fan speed and 97.4 dBA at 100% Fan speed |
76.7 dBA at 40% fan speed, 88.7 dBA at 70% Fan speed and 97.4 dBA at 100% Fan speed |
|
RoHS compliance |
Yes |
Yes |
Yes |
Yes |
Yes |
|
MTBF |
352,590 hours |
292,740 hours |
365,610 hours |
320,040 hours |
290,680 hours |
|
Minimum ACI image |
ACI-N9KDK9-13.1.2 |
|
ACI-N9KDK9-14.0 |
ACI-N9KDK9-14.1.2 |
ACI-N9KDK9-14.1.2
|
|
Minimum NX-OS image |
NXOS-703I7.3 |
NXOS-10.1(1) |
NXOS-703I7.3 |
NXOS-9.3(1) |
NXOS-9.3(1) |
