Function | CL3116NX |
Computer Connections | |
Direct | 16 |
Maximum | 256 (via Cascade) |
Port Selection | OSD, Hotkey, Pushbutton |
Connectors | |
KVM Ports | 16 x SPHD Female (Yellow) |
Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
Power | 1 x IEC 60320/C14 |
External Mouse Port | 1 x USB Type A Female (Front) |
Switches | |
Port Selection | 16 x Pushbutton |
Reset | 1 x Semi-recessed Pushbutton |
Firmware Upgrade | 1 x Slide Switch |
Power | 1 x Rocker Switch |
LCD Control | 4 x Pushbutton |
LCD Power | 1 x LED Pushbutton |
LEDs | |
Online | 16 (Orange) |
Selected | 16 (Green) |
Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
LED Illumination Light | 1 x LED Illumination Light |
Panel Spec | |
LCD Module | 18.5″ TFT-LCD |
Resolution | 1366 x 768 @ 60 Hz |
Response time | 5 ms |
Viewing Angle | 170° (H), 160° (V) |
Pixel Pitch | 0.3 mm x 0.3 mm |
Support Color | 16.77M colors |
Contrast Ratio | 1000 : 1 |
Luminance | 250 cd/m² |
Video | |
Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B |
Scan Interval | 1-255 seconds |
Emulation | |
Keyboard / Mouse | PS/2, USB |
Maximum Input Power Rating | 100–240 V AC, 50-60 Hz, 1 A |
Power Consumption | AC110V:14.1W:70BTU AC220V:14.9W:74BTU |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -20-60°C |
Humidity | 0 – 80% RH, Non-condensing |
Physical Properties | |
Housing | Metal + Plastic |
Rail Type | Single Rail |
Weight | 10.60 kg ( 23.35 lb ) |
Dimensions (L x W x H) | 48.06 x 63.17 x 4.28 cm (18.92 x 24.87 x 1.69 in.) |
Body Dimensions(L x W x H) | 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.) |
Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |

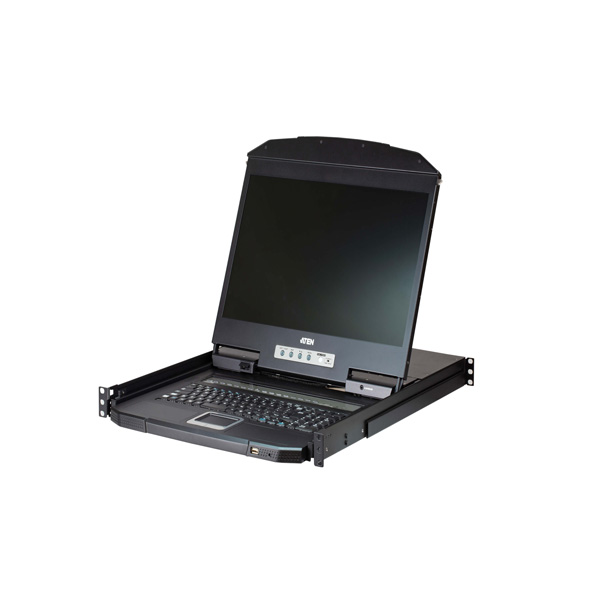

ATEN LCD KVM CL3116
- Exclusive LED illumination light
- Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
Giá bán: Liên hệ báo giá
Tư vấn lắp đặt sản phẩm theo từng yêu cầu thực tế
Bảo hành tận nơi trong thời gian bảo hành sản phẩm
Giao hàng miễn phí trong nội thành HCM
Tư vấn sản phẩm phù hợp với hệ thống hiện hữu
Hàng chính hãng, chứng từ CO - CQ kèm theo
Bảo hành mở rộng lên đến 5 năm
